This is not a kit for beginners.
Must be 18 years of age or older to purchase.
This Bot is NOT a toy. Do not test or operate this bot outside a suitable
enclosed arena that has a minimum of 1/4" thick polycarbonate walls.
Failure to follow this instruction may result in severe injury.
Fights & Competition Awards with competition upgrade
1st place Dangezone Fight & Flight 2019
1st place Seattle Bot Battles Rumble 2019
1st place Oregon State Bot Brawl 2019
1st place Hornet Combat Rumble @ CSUS 2019
2nd Place Rooster Tap Room Tap Out 2020
3rd Place Santa Slam 2020
Featured Article Make Magazine
Video Instructions: Click Here
(Please pay attention to notes in Taserface build video description for changes)
Electronics Instructions PDF: Click Here
CAD or STL Files NOT Available
Both versions come with everything you need to get started in combat robotics and have the potential to win. (Except Transmitter, Receiver & Battery charger sold separately).

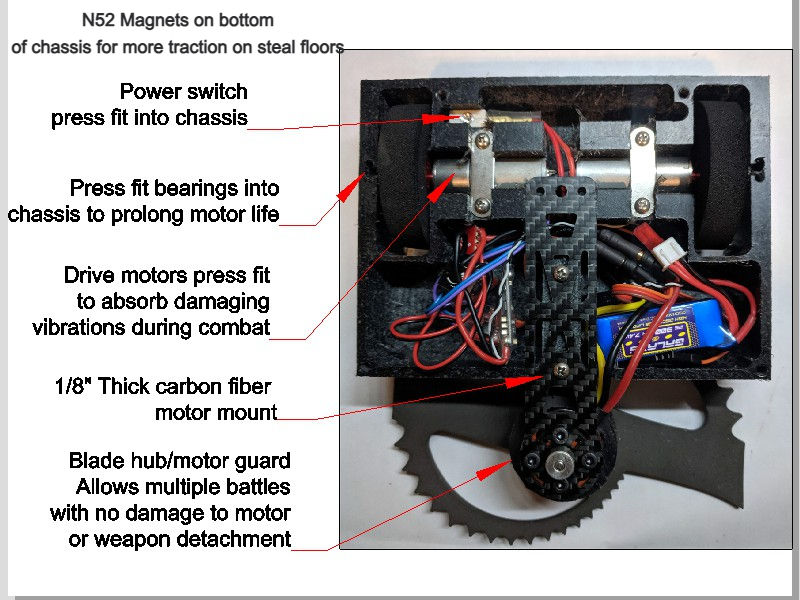

'Taserface Pro' Battle Robot Kit includes:
- Pro grade chassis: Made in house milled out of stong Ultra High Molecular Weight Polyethylene
- Pro grade lid: Polycarbonate (.0625 Thick) combat armor that keeps the components safe.
- Pro grade DYS XSD 20A Brushless Speed Controller for the weapon motor
- Pro grade FingerTech 1.75 x .5 inch Snap Wheels
- Pro grade FingerTech Snap wheel hubs provide both speed and pushing power
- Pro grade FingerTech 3.5inch x 3mm Asymmetric Weapon bar blade
- Pro grade FingerTech's New Blade Mount
- Pro grade drive motors: Fingertech Silver Spark motors 50:1
- Pro grade Drive ESC. Saves weight and provides precise controlled drive
- Pro grade High Discharge rate 3S Battery for more power to drive and weapons
- Pro grade FingerTech Mini Power Switch (Required to compete in professional events)
- Pro grade Weapon Motor with 4mm shaft for a stronger weapon mount (Drilling Required)
- Pro grade BEC. Helps secure your electronic reliability
- Pro Grade N52 Neodymium Magnets for traction and flip resistance on steel floors
- 1/4" inch thick AR500 Steel Articulating Wedglets
- Ball Bearings to protect drive motor shafts from gear stripping during hard hits
- Support bar to allow driving upside down
- All screws and hardware included to mount the motor and top armor.
'Taserface' Battle Robot Kit includes (Can be upgraded to full Pro at a later time):
- Pro grade Chassis: made in house milled out of stong Ultra High Molecular Weight Polyethylene
- Pro grade lid: Polycarbonate (.0625 Thick) combat armor that keeps the components safe.
- Pro grade DYS XSD 20A Brushless Speed Controller for the weapon motor
- Pro grade FingerTech 1.75 x .5 inch Snap Wheels and
- Pro grade Snap Hubs provide both speed and pushing power
- Pro grade FingerTech 3.5inch x 3mm Asymmetric Weapon bar blade
- Pro grade FingerTech's New Blade Mount
- Pro grade Weapon Motor with 3.175mm shaft Brushless Outrunner, D2822/17, 1100KV
- 2S Rechargeable 400mAh lipo battery pack
- Power switch Toggle (Upgrade with a FingerTech Mini Power Switch to compete in professional events)
- Drive motors: 250 RPM gear motors Qty- 2
- Drive motor ESC: Brushed Speed Controller Dual Way Bidirectional 5A
- All screws and hardware included to mount the motor and top armor.
Chassis Dimensions:
Body Width: (5.75in)
Length: (3.75in)
Body Height: 1inRobot Weight with everything in it: 442 grams (15.59oz)
Requires:
- Transmitter and receiver- LiPo Charger 2S-3S Balance Battery Charger 7.4-11.1V
Tools Required:
- Standard hex wrenches
- Crosshead screwdriver
- 7/16” open-end or adjustable wrench
- Wire stripper
- Soldering iron and solder (60/40 rosin core type recommended).
- Grinding device to shorten screws and cut drive motor shaft to be flush with the chassis (Optional).
*Pre Assembled: One week to assemble and ship. If ordering without a remote & receiver at the same time from us then drive motors might need to be reconfigured due different wiring scenarios and programming of the remote you chose to use. We will hook up and test with a Flysky T6A 2.4GHz 6-Channel Radio Transmitter & Receiver. All connections will be soldered for stronger connection instead of using power blocks. Pre-assembled does not include loctite on connections so you might want to go through and loctite any hardware that might vibrate loose during battles.
